SV 360

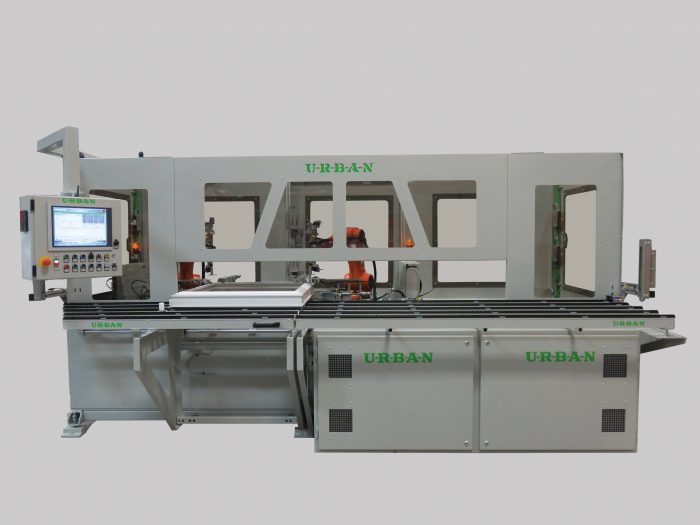

2-Head CNC Frame Weldseam Cleaner

Urban’s self-centring tool technology meets today’s robot technology.

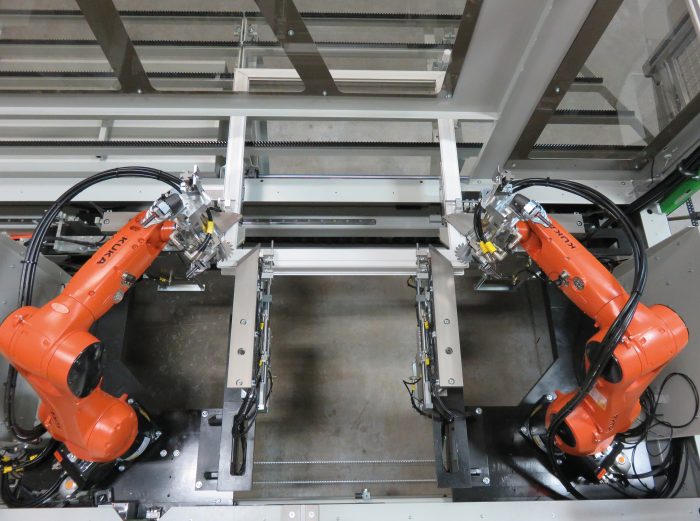

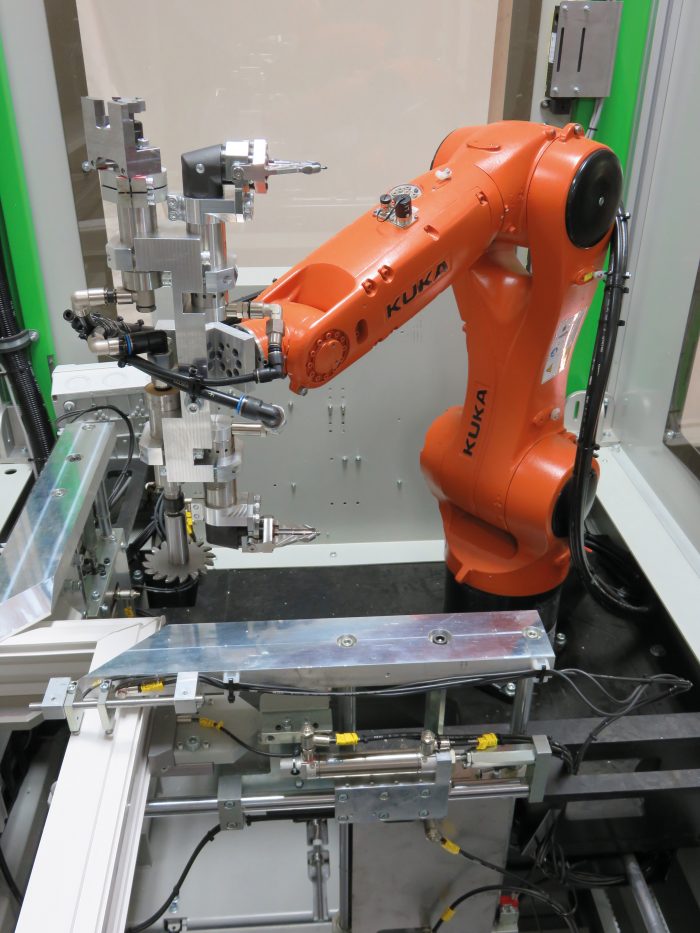

Two head by 6 Axes Kuka Robotic movement providing complete inside and outside cleaning of welded frame. Flexible axis movements allow for minimum tools with only 4 cutting tools required to clean a wide range of profiles. Simple tool setup utilizing routers and tracer systems that auto adjust to profiles tolerances.



Features:

  • Cycle time comparable with a traditional two-axis cleaning machine

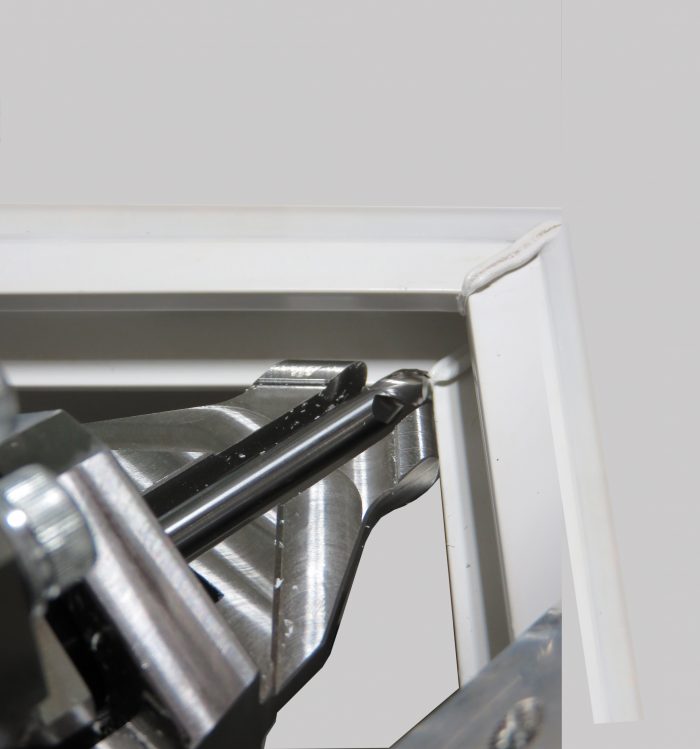

  • Standard self guided air drill motors with special drill bits
  • 4 cutting tools:
    • Small saw blade for back outside cleaning
    • Top and bottom horizontal outside cleaning
    • Vertical inside cleaning
    • Horizontal inside cleaning, including screen track
  • Mobile head controlled by servo axis for quick precise positioning
  • Oversized brush table support included for ergonomic operation
  • Automatic profile identification

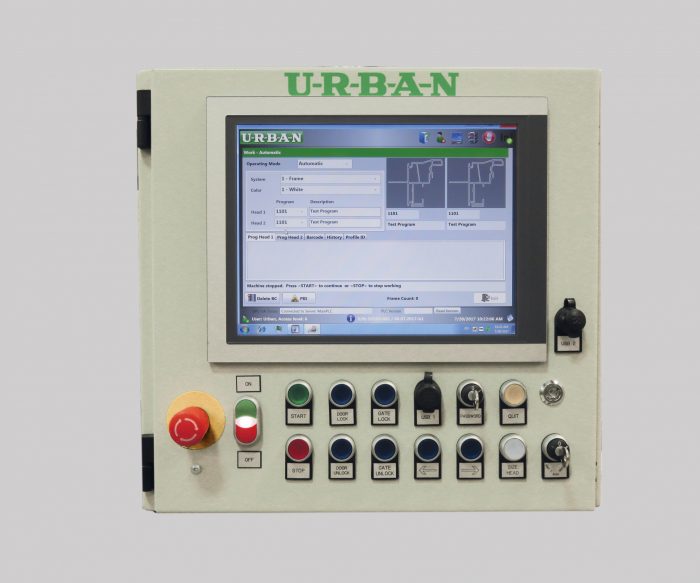

  • Network-ready industrial window PC based control
  • Dust containment system
