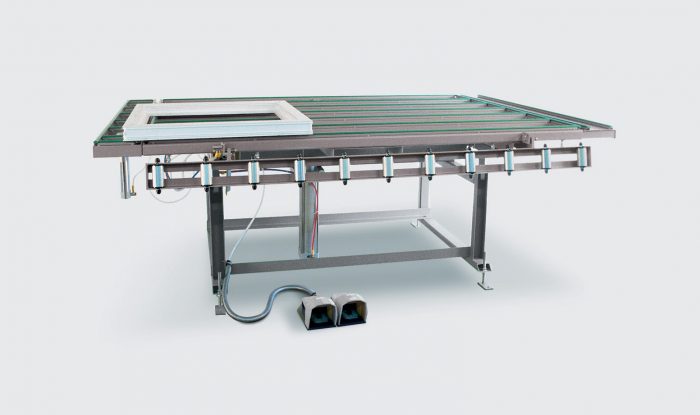

STH 2500

Height Adjustable Tilted Table


Move windows elements into correct machining position. From horizontal into vertical and from bottom to top position. Table height from 850 mm to 950 mm adjustable, therefore integrable into production line.



  • Stepless tilting table area from 100° to 180°
  • Stepless height adjustable up to 500 mm
  • Left and right extendable additional support up to 500 mm
  • 2 flat clamping cylinder units (SP 120)
  • Easy removable roller conveyor
  • Profile protecting with glass ledges or felt surface (Please indicate when ordering, brush available at extra charge)

Supplement variant:

  • Moving unit FH 10.2


Available Models:

  • STH 2510, 3510 left-right and additionally height extendable support up to 500 mm
  • STH 2500/W same as STH 2500 only with wheather bars notch (72 mm deep, 140 mm high)
  • Additional flat clamping cylinder unit SP 120, 200
